Features:

SPEED PREVAILS

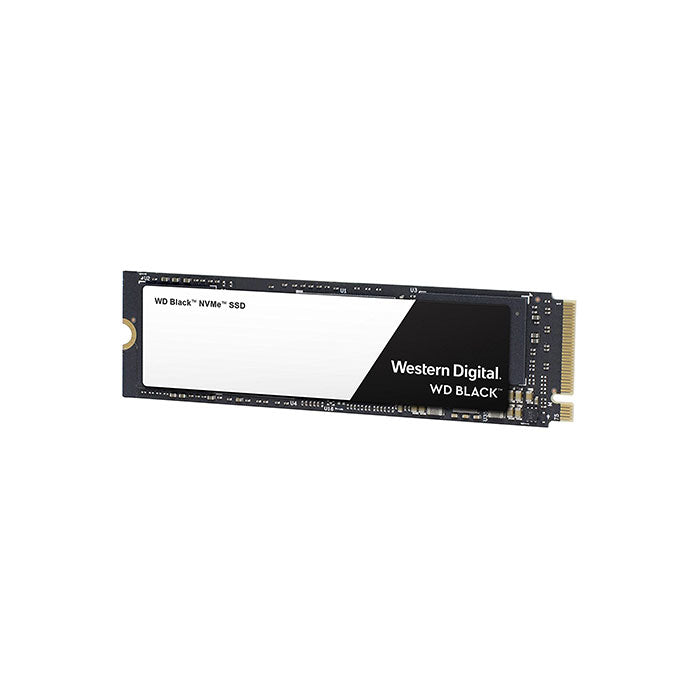

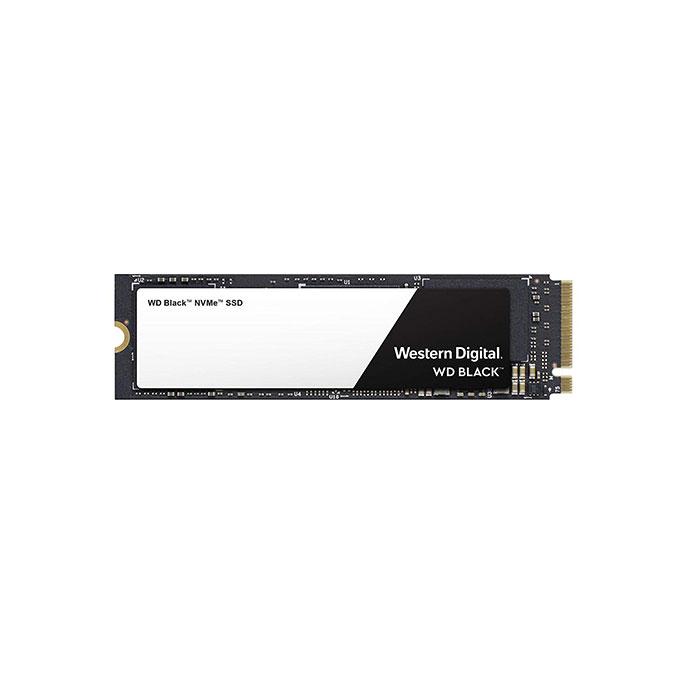

Introducing the WD Black™ NVMe™ SSD: the driving force behind everything you do. Featuring the innovative Western Digital NVMe SSD storage architecture, it’s where blazing speed, top-tier performance, and Western Digital 3D NAND technology combine. With up to 600TBW and 1.75M hours MTTF, the WD Black NVMe SSD is the virtually invincible SSD you can rely on.

THE FAST WAY FORWARD

No compromises. Nothing holding you back. The WD Black NVMe SSD features sequential read and write speeds up to 3,400/2,800 MB/s for gaming, video editing, virtual reality, and beyond.

DEMAND MORE. CONSUME LESS.

Go ahead—do it all. WD Black is driven to keep up with even the most demanding workloads. Innovative power management and thermal throttling consistently help prevent overheating to deliver smooth, fast performance.

BUILT FOR GREATNESS

Eliminate boundaries with Western Digital’s new vertically integrated SSD platform. This innovative storage architecture is optimized to Western Digital 3D NAND, resulting in low latency, power efficiency, and compatibility with the growing range of applications benefitting from NVMe.

FULFILL YOUR POTENTIAL

Create without limits. The WD Black NVMe SSD is certified by WD F.I.T. Lab for compatibility with a wide range of high-performance PC configurations—and comes with a 5-year limited warranty.

UNDER YOUR COMMAND

Monitor your drive’s available capacity, operating temperatures, SMART attributes and more with the WD SSD Dashboard. Acronis® True Image™ WD Edition software, available as a free download, can clone drives and back up your operating system, applications, settings, and all of your data.

PRODUCT SPECIFICATIONS

Model Numbers: WDS500G2X0C
WD Black NVMe SSD M.2 2280: PCIe Gen3 8 Gb/s, up to 4 lanes

Performance

Sequential Read MB/s up to (Q=32, T=1): 3,000
Sequential Write MB/s up to (Q=32, T=1): 1,600
Random Read 4KB IOPS up to (Q=32, T=8): 220,000
Random Write 4KB IOPS up to (Q=32, T=8): 170,000
Endurance (TBW): 200

Power

Average Active Power (mW): 110
Low Power (PS3): 70mW
Peak Power (10us): 2.8A
Slumber (PS4) Low Power: 2.5mW

Reliability

MTTF10 1.75M: hours

Environmental

Operating Temperatures: 32 °F to 158 °F (0 °C to 70 °C)
Non-operating Temperatures: -67 °F to 185 °F (-55 °C to 85 °C)
Operating Vibration: 5.0 gRMS, 10–2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7–800 Hz, 3 axes
Shock: 1,500 G @ 0.5 ms half sine
Certifications FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick

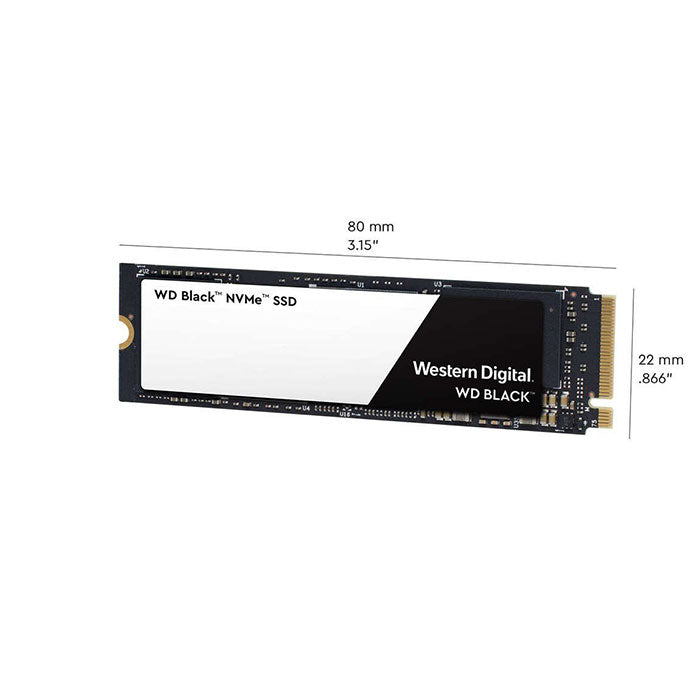

Physical Dimensions

Length: 80 ± 0.15mm
Width: 22 ± 0.15mm
Height: 2.38mm
Weight: 7.5 ± 1g
Warranty: 5 Years

BRAND	Western Digital
STORAGE-FORM-FACTOR	M.2
STORAGE-SPACE	250GB
