- TPLink Deco X20-4G 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway
Description

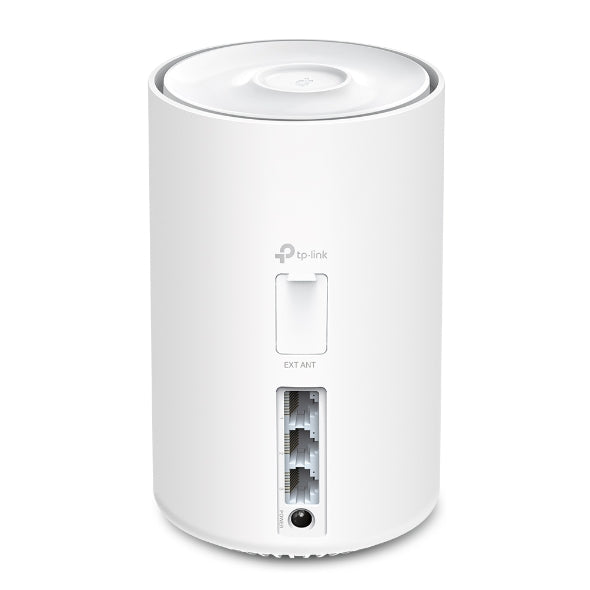

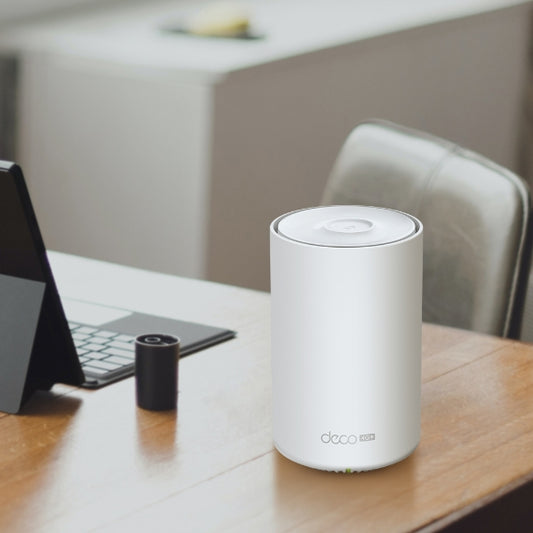

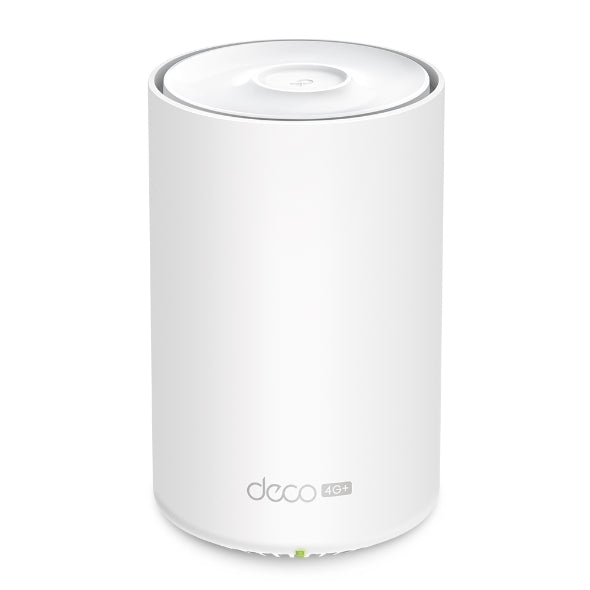

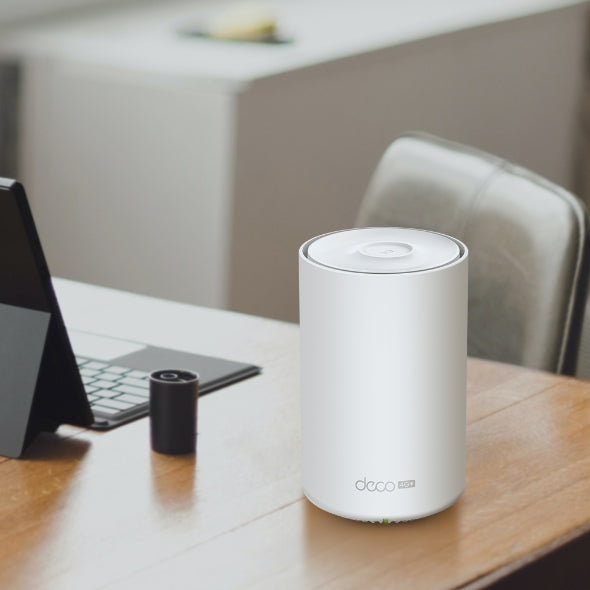

TPLink Deco X20-4G 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway
Features

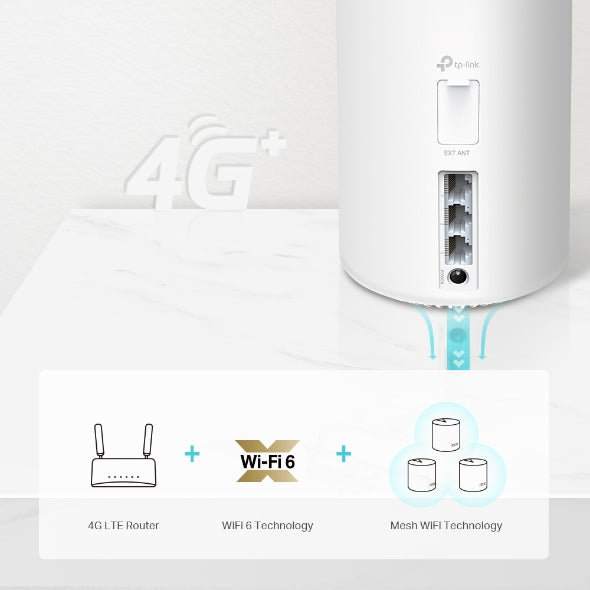

- Internet Everywhere with 4G+ Speed - Provides WiFi 6 Mesh coverage through 4G+ CAT6 access
- Superior WiFi 6 speeds up to 1.8 Gbps - 1201 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual band WiFi with WiFi 6 technology
- Fully Gigabit Ethernet - 3x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed**
- TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports
- 3G/4G Failover - Flexible access from Ethernet to 3G/4G to prevent data loss
Specifications
| WIRELESS | |
| Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
1-3 Bedroom Houses (1-pack)TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2 LTE antennas, 2 Wi-Fi antennas (Internal) Beamforming |
| WiFi Capacity |
HighDual-Band
Distribute devices to different bands for optimal performance MU-MIMO OFDMA 4 Streams |
| Working Modes | 3G/4G, Router, Access Point |
| HARDWARE | |

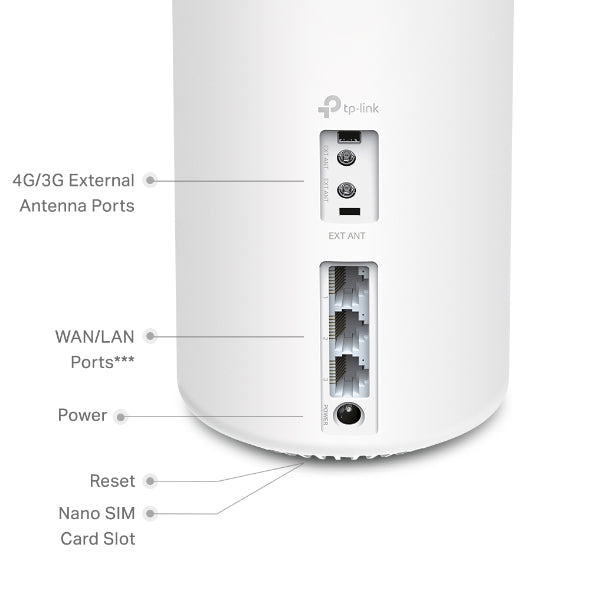

| Ethernet Ports |
3× Gigabit Ports
Supports WAN/LAN auto-sensing |
| USB Support | 12 V ⎓ 1.5 A |
| Buttons | RESET Button |
| Ports and Connections |
2 × 3G/4G External Antenna Ports
Compatibility 3G: Carrier Aggregation: |
| SECURITY | |
| WiFi Encryption |
WPA-Personal WPA2-Personal WPA3-Personal |
| Network Security |
SPI Firewall Access Control HomeShield SecurityReal-Time IoT Protection |
| Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
| Protocols |
IPv4 IPv6 |
| Service Kit | HomeShield |
| WAN Types |
Dynamic IP Static IP PPPoE L2TP PPTP |
| Quality of Service | HomeShield QoSQoS by Device |
| Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding |
Port Forwarding UPnP |
| IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP |
Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
| WiFi Transmission Power |
CE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz) |
| PHYSICAL | |
| Dimensions (W×D×H) |
4.13 × 4.13 × 6.57 in (105 × 105 × 167mm) |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents |
1-pack 1 Deco X20-4G unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide 2 SMB to SMA Adapters 2-pack 3-pack |
| Box Dimensions (W X D X H) |
4.13 × 4.13 × 6.57 in (105 × 105 × 167mm) |
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH |
