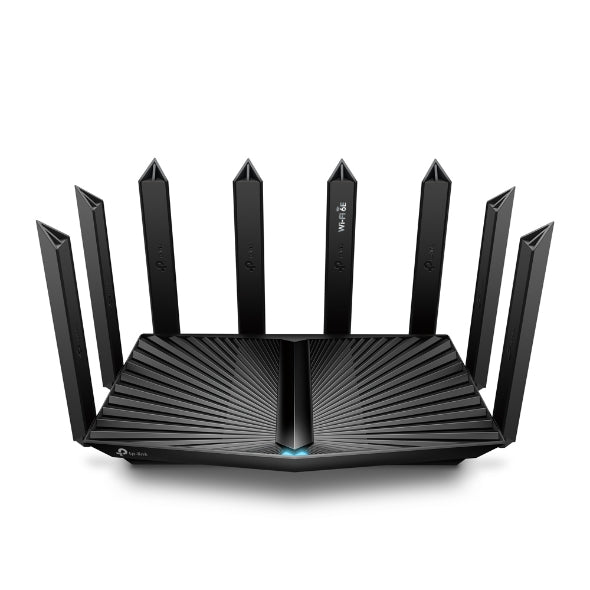

TPLink Archer AXE95 AXE7800 Tri-Band Wi-Fi 6E Router
Features
- AXE7800 Tri-Band WiFi – 7800 Mbps tri-band WiFi for ultra-fast browsing, 8K streaming, online gaming, and large file downloading, all at the same time.
- Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
- Ultra Connectivity – 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
- Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
- HomeShield – Customize your home network with enhanced security and control.
- OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
- Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
- More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.
Specifications
| WIRELESS | |
| Standards |
IEEE 802.11ax 6 GHz, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AXE7800 6 GHz: 2402 Mbps (802.11ax) 5 GHz: 4802 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
4 Bedroom Houses8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming High-Power FEM 4T4R |
| WiFi Capacity |
Very HighTri-Band
Allocate devices to different bands for optimal performance 4×4 MU-MIMO OFDMA Airtime Fairness DFS 8 Streams |
| Working Modes |
Router Mode Access Point Mode |
| HARDWARE | |
| Processor | 1.7 GHz Quad-Core CPU |
| Ethernet Ports |
1× 2.5 Gbps WAN/LAN Port 1× 1 Gbps WAN/LAN Port 3× 1 Gbps LAN Ports |
| USB Support |
1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: Supported Functions: |
| Buttons |
Power On/Off Button Reset Button |
| Power | 12 V ⎓ 2.5 A |
| SECURITY | |
| WiFi Encryption |
WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield SecurityReal-Time IoT Protection |
| Guest Network |
1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN Server PPTP VPN Server L2TP VPN Server |
| VPN Client |
Open VPN Client PPTP VPN Client L2TP VPN Client |
| SOFTWARE | |
| Protocols |
IPv4 IPv6 |
| Service Kits | HomeShield |
| OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls |
HomeShield Parental ControlsCustom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service |
Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding |
Port Forwarding Port Triggering DMZ UPnP Virtual Server |
| IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP |
Address Reservation DHCP Client List Server |
| DDNS |
TP-Link NO-IP DynDNS |
| Management |
Tether App Webpage |
| OTHER | |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power |
FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz) |
| WiFi Reception Sensitivity |
2.4 GHz: 11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm 5 GHz: 11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm 11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm 11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm 11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm 6 GHz: 11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm 11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm 11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm 11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm |
| PHYSICAL | |
| Dimensions (W×D×H) |
12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm) |
| Package Contents |
Wi-Fi Router Archer AXE95 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
