- Fractal Design Ridge (M-ITX) Mini Tower Cabinet (White)
Description
Features:
- • Supports GPUs up to a length of 335 mm

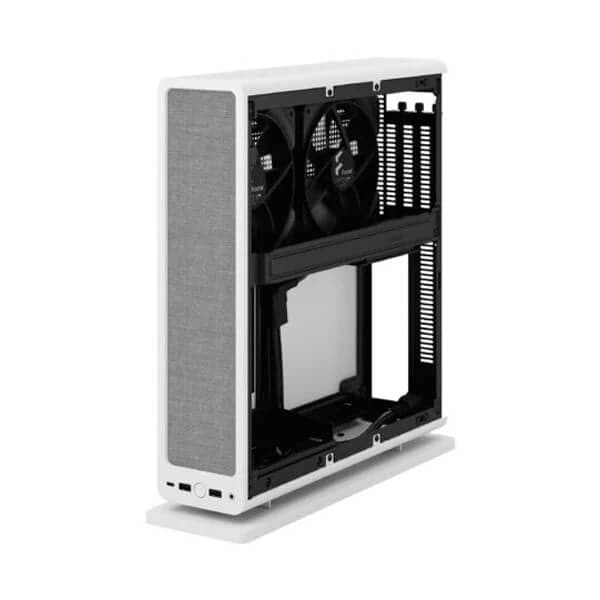

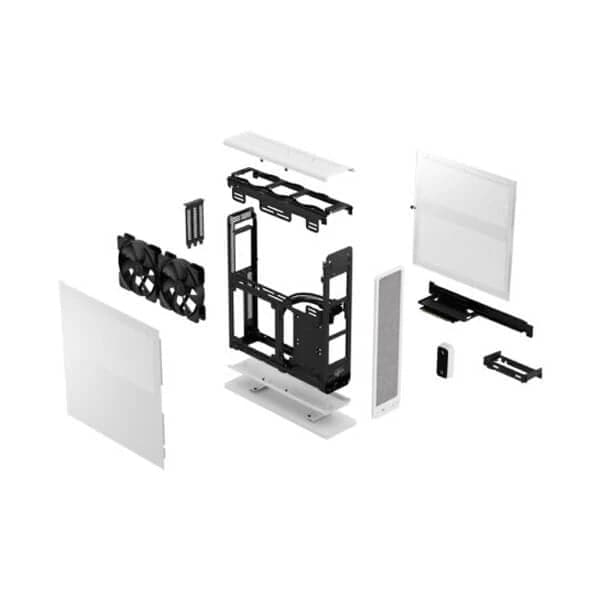

- • All panels are removable, enabling maximum accessibility
- • PCIe 3.0 riser card included
Inch-perfect efficiency
- Meticulously engineered to maximize its capability while minimizing its footprint
- Small form factor case with a volume of 12.6 liters
- Supports GPUs up to a length of 335 mm
All-around ventilation

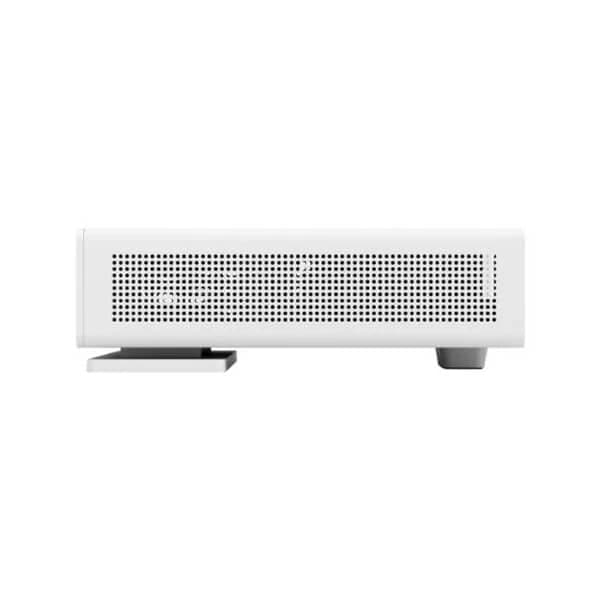

- Ventilated on all sides to maximize its cooling potential

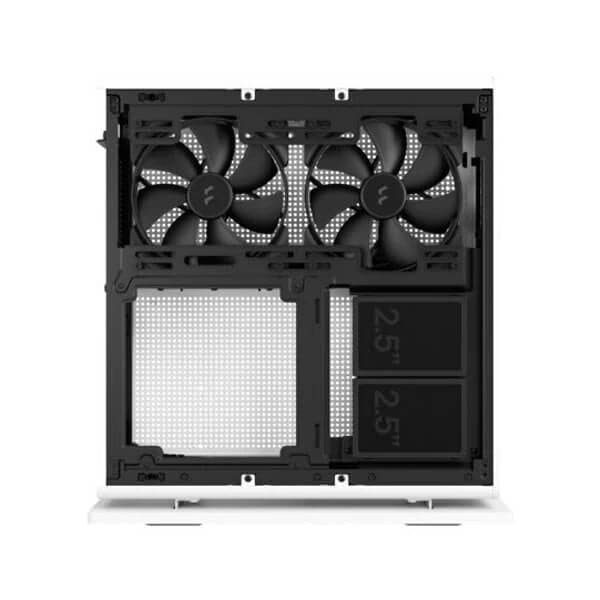

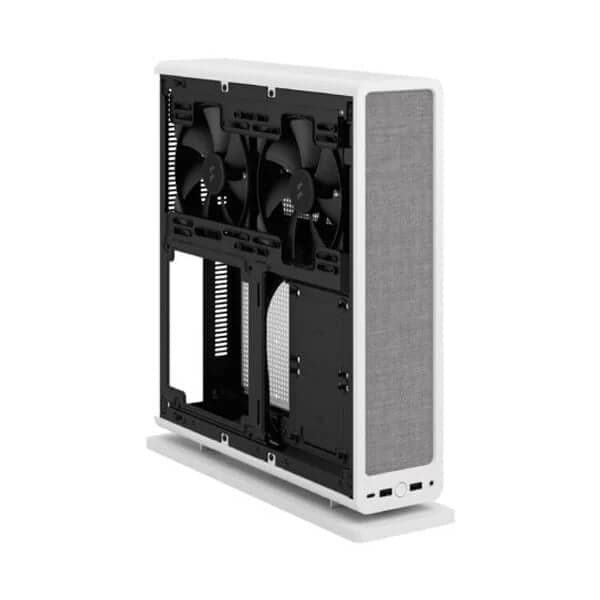

- Comes with 2x 140 mm PWM Aspect fans pre-installed
- Supports 2x 120/140 mm and 3x 80 mm fans
Well-balanced design

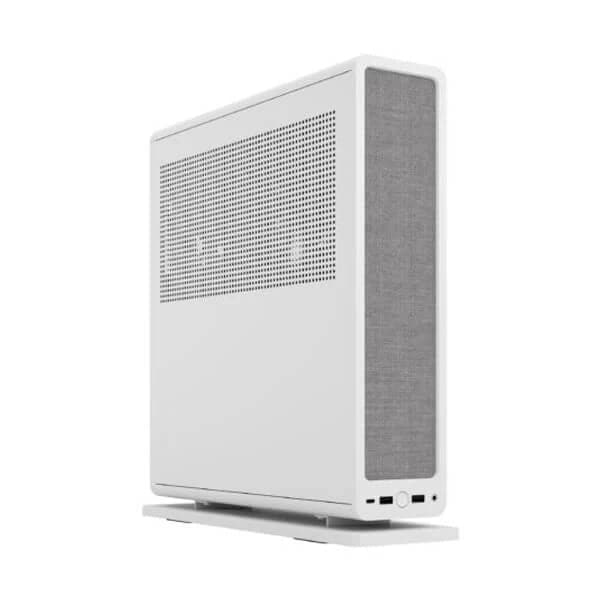

- Stylish fabric front with CNC machined aluminum frame
- Features a Power LED bar in front
Specifications:

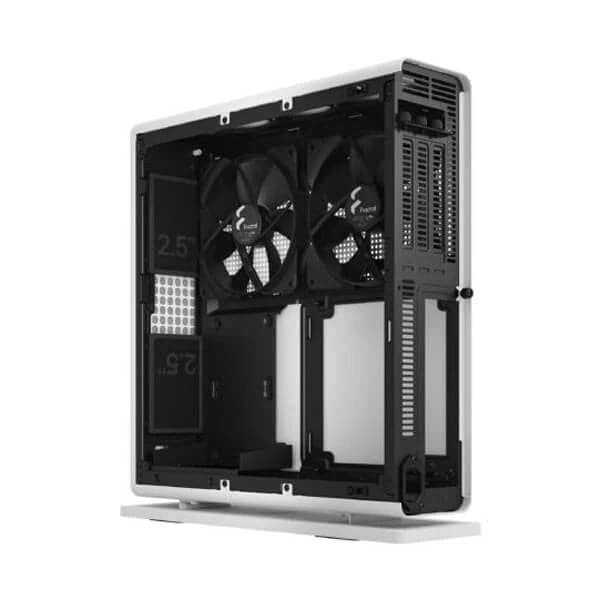

| Dedicated 2.5" drive mounts | 4x included, 4x positions total |

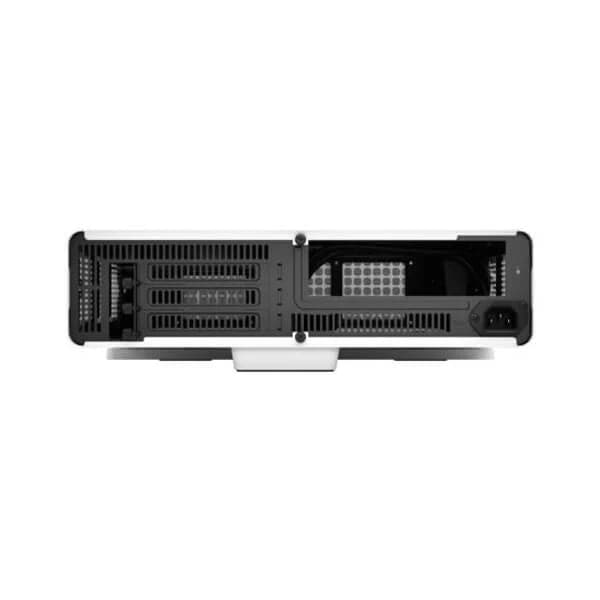

| Expansion slots | 3-slot |

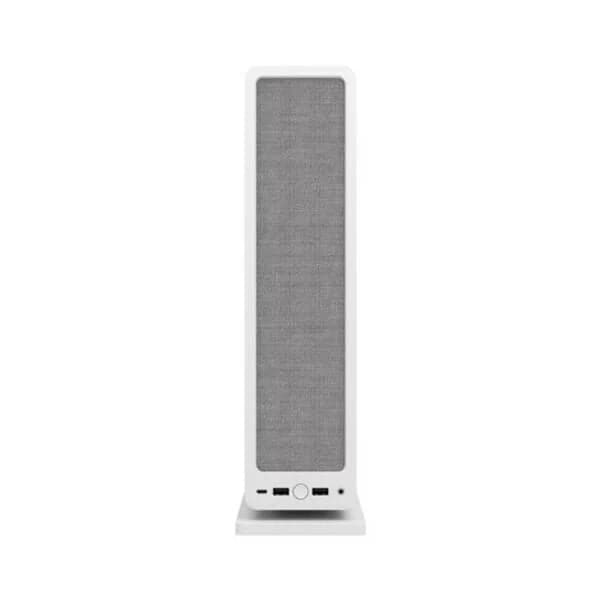

| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED |
| Total fan mounts | 2x 120/140 mm and 3x 80 mm |
| Side fan | 2x 120/140 mm (2x PWM Aspect fan 140 mm included) |
| Top fan | 3x 80 mm (not included) |
| Cable routing space | 13,8 mm (behind PSU) |
| Tool-less slide with thumbscrew lock | Side panels |
| Captive thumbscrews | Side panels |
| Left side panel | Steel |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | Mini ITX |
| Power supply type | SFX, SFX-L |
| Side radiator | 120 mm when ≤175mm long GPUs are installed (280 mm without GPU) |
| PSU max length | SFX-L |
| GPU max length | 325 mm with SSD installed. 335 mm without SSD installed. |
| GPU max height | 125 mm with top fan(s) installed, 137 mm without top fans |
| GPU max thickness | 57 mm with 2x 140 mm fans installed, 82 mm without side fans |
| CPU cooler max height | 70 mm |
| Dimensions | |

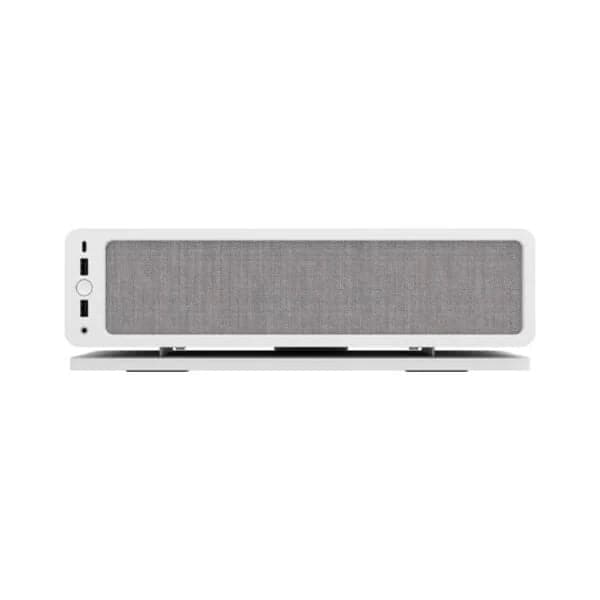

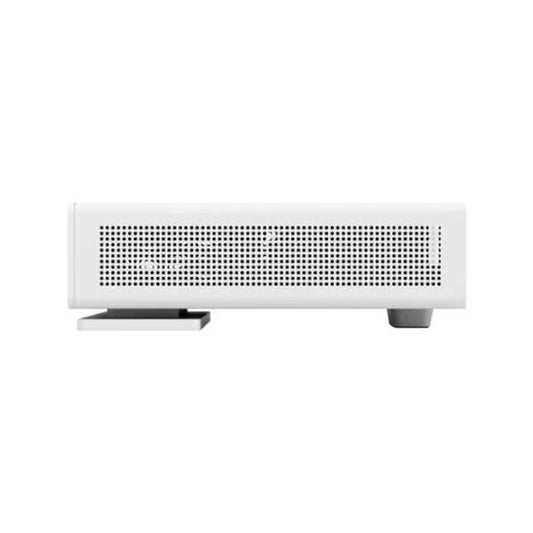

| Case dimensions | Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm |
| Case dimensions w/o feet/protrusions/screws | 355 x 95 x 375 mm |
| Net weight | 4.3 kg |
| Package dimensions (LxWxH) | 426 x 167 x 431 mm |
| Gross weight | 5.5 kg |
| Volume | 12.6 liter |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
