Description

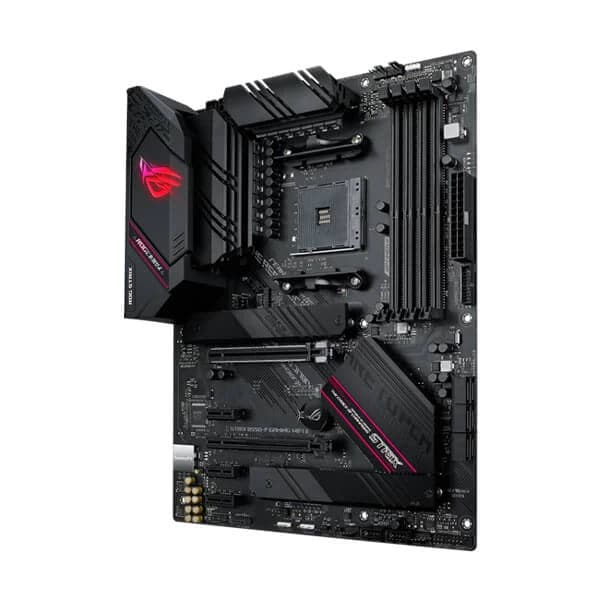

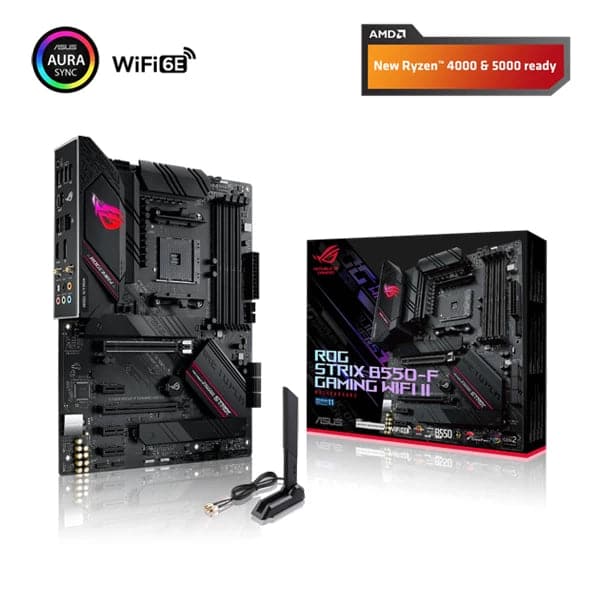

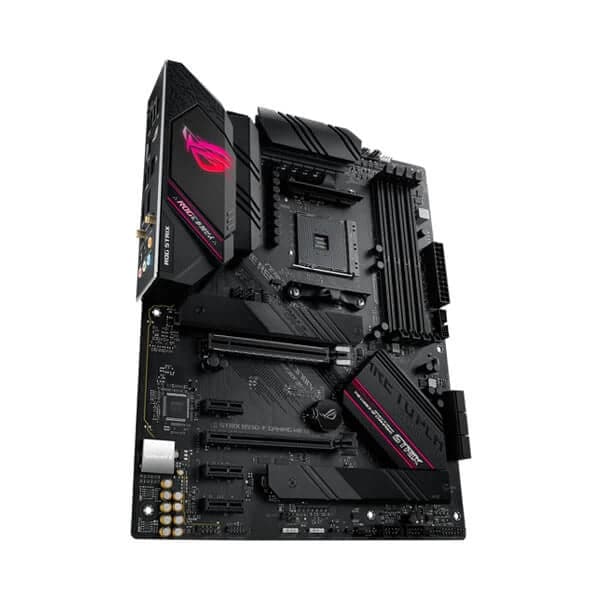

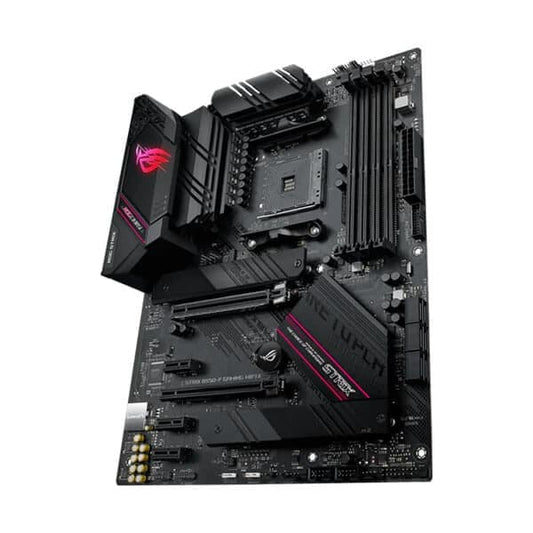

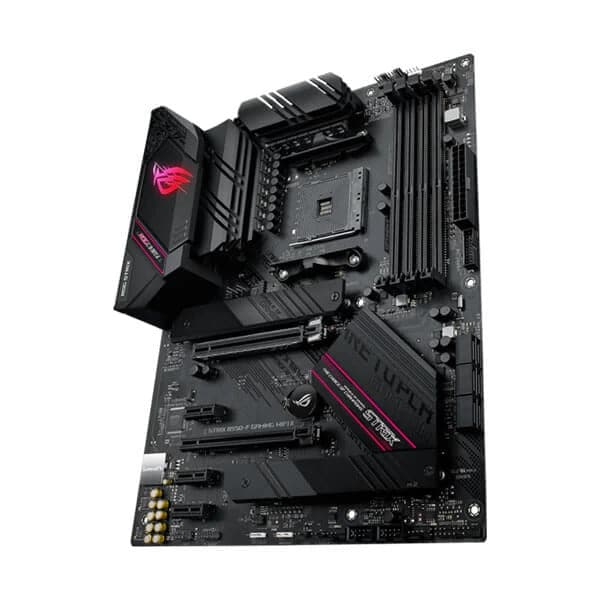

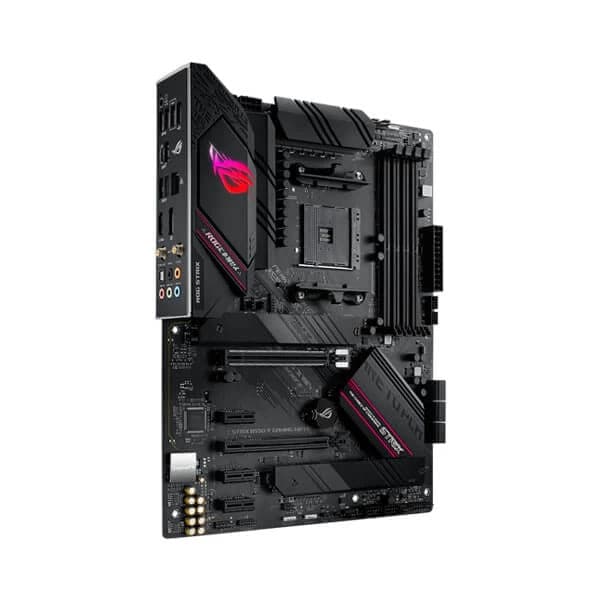

ASUS ROG Strix B550-F Gaming WiFi II Motherboard
Features:
- AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
- Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
Specifications:
Model | STRIX B550-F GAMING WIFI II |
CPU Socket Type | AM4 |
CPU Type |
Supports AMD Ryzen 5000 / 3000 Series Processors* Supports AMD Ryzen 5000 / 4000 G-Series Processors |
Chipset | AMD B550 |
Number of Memory Slots | 4×288pin |
Memory Standard |
DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
Buffer Supported | Un-buffered |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
PCI Express 3.0 x16 |
1 x PCI Express 3.0 x16* * Supports x4 mode. * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3. |
PCI Express x1 | 3 x PCIe 3.0 x1 |
SATA 6Gb/s | 6 x SATA 6Gb/s |
M.2 |
AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* * When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled. |
SATA RAID | 2000/1/10 |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
Audio Channels | 7.1 Channels |
LAN Chipset | Intel I225-V |
Max LAN Speed | 10/100/1000/2500Mbps |
Wireless LAN |
Wi-Fi 6E 802.11a/b/g/n/ac/ax |
Bluetooth | Bluetooth 5.2 |
Back I/O Ports |
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports 1 x Wi-Fi Module 1 x DisplayPort 1 x HDMI port 1 x Intel I225-V 2.5G Ethernet 1 x Optical S/PDIF out 5 x Audio jacks 1 x BIOS FlashBack button |
Onboard USB |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Other Connectors |
Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU fan header 1 x 4-Pin CPU_OPT fan header 3 x 4-Pin Chassis fan headers Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front panel audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt header |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin |
1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
Features |
Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM - ASUS Q-Slot ASUS Thermal Solution - M.2 heatsink AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3: - Performance And Power Saving Utility EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR DAEMON Tools Norton Anti-virus software (Free Trial version) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows 10 64-bit, Windows 11 64-bit |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
