- Asrock Z790 LiveMixer Intel Z790 ATX Motherboard
Description

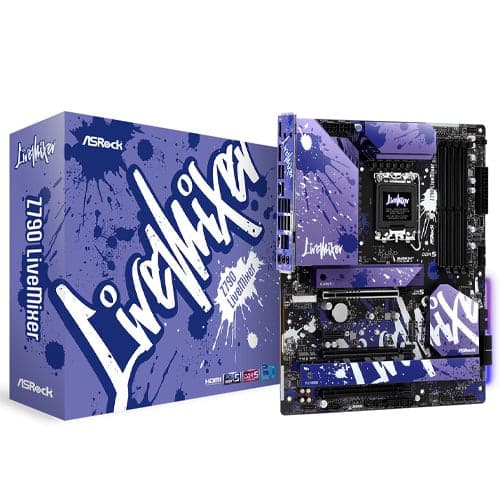

Asrock Z790 LiveMixer Intel Z790 ATX Motherboard
Features :
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 14+1+1 Phase Power Design, SPS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 7200+(OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-C (Rear), 2 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front)
- Realtek 2.5G LAN
Specifications
Model | |
Brand | ASRock |
Model |
Z790 LiveMixer
|
Supported CPU
|
|
CPU Socket Type |
LGA 1700
|
CPU Type |
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700).
|
Supports Intel Hybrid Technology
|
|
Supports Intel Turbo Boost Max 3.0 Technology
|
|
Supports Intel Thermal Velocity Boost (TVB)
|
|
Supports Intel Adaptive Boost Technology (ABT)
|
|
Chipsets | |
Chipset |
Intel Z790
|
Memory | |
Number of Memory Slots |
4x288pin (DDR5)
|
Memory Standard |
Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
|
1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
|
|
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
|
|
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
|
|
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
|
|
Supports Intel Extreme Memory Profile (XMP) 3.0
|
|
* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
|
|
Maximum Memory Supported | 128GB |
Channel Supported |
Dual Channel
|
Expansion Slots
|
|
PCI Express 5.0 x16 |
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
|
* If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
|
|
* Supports NVMe SSD as boot disks
|
|
Supports AMD CrossFire
|
|
PCI Express 4.0 x16 |
2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode*
|
PCI Express x1 |
1 x PCIe 3.0 x1 Slot (PCIE2)
|
Storage Devices
|
|
SATA 6Gb/s |
4 x SATA3 6.0 Gb/s Connectors
|
M.2 |
5 x M.2 (Key M) + 1 x M.2 (Key E)
|
CPU: | |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
|
|
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
Chipset: | |
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
Supports Intel Volume Management Device (VMD)
|
|
* Supports NVMe SSD as boot disks
|
|
* If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
|
|
* Either M2_1 or M2_2 can be used at a time.
|
|
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
|
|
SATA RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
|
|
Onboard Audio
|
|
Audio Chipset |
Realtek ALC897 Audio Codec
|
Nahimic Audio
|
|
Audio Channels |
7.1 Channels
|
Onboard LAN
|
|
LAN Chipset |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
Dragon RTL8125BG
|
|
Supports Dragon 2.5G LAN Software
|
|
Smart Auto Adjust Bandwidth Control
|
|
Visual User Friendly UI
|
|
Visual Network Usage Statistics
|
|
Optimized Default Setting for Game, Browser, and Streaming Modes
|
|
User Customized Priority Control
|
|
Max LAN Speed | 2.5Gbps |
Rear Panel Ports
|
|
Back I/O Ports |
2 x Antenna Mounting Points
|
1 x HDMI Port
|
|
1 x DisplayPort 1.4
|
|
1 x Optical SPDIF Out Port
|
|
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
|
|
2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
|
|
4 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports. USB32_45 support Ultra USB Power.)
|
|
6 x USB 2.0 Ports
|
|
1 x RJ-45 LAN Port
|
|
1 x Line Out Jack (Gold Audio Jack)
|
|
1 x Microphone Input Jack (Gold Audio Jack)
|
|
Internal I/O Connectors
|
|
Onboard USB |
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
|
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
|
|
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
|
|
Other Connectors |
1 x eDP Signal Connector
|
1 x SPI TPM Header
|
|
1 x Power LED and Speaker Header
|
|
1 x RGB LED Header*
|
|
3 x Addressable LED Headers**
|
|
1 x CPU Fan Connector (4-pin)***
|
|
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
|
|
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
|
|
1 x Front Panel Audio Connector
|
|
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
|
|
* Supports in total up to 12V/3A, 36W LED Strip
|
|
** Support in total up to 5V/3A, 15W LED Strip
|
|
*** CPU_FAN1 supports the fan power up to 1A (12W).
|
|
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
|
|
***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
|
|
***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
|
|
Physical Spec
|
|
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) |
12.0″ x 9.6″
|
Power Pin |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
|
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|
|
Windows Compatibility
|
|
Windows 11 |
Supported
|
Packaging
|
|
Package Contents |
Accessories
|
1 x User Manual
|
|
2 x SATA Data Cables
|
|
5 x Screws for M.2 Sockets
|
|
**Features, Price and Specifications are subject to change without notice to customer.
|
