- Asrock H470M-HVS M-ATX Motherboard
Description

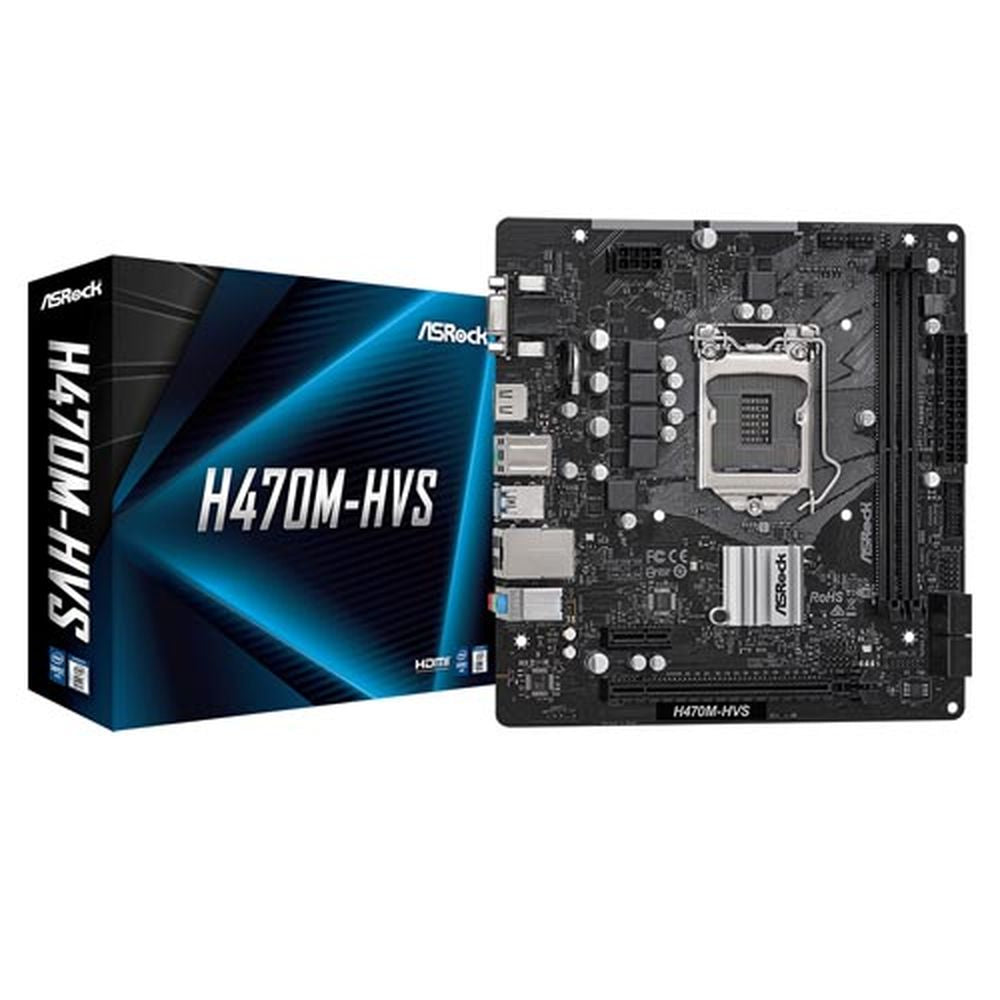

Asrock H470M-HVS Micro ATX Motherboard
Features
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Supports DDR4 2933MHz
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options : HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
Specifications
| Unique Feature |
ASRock Super Alloy
|
|
Sapphire Black PCB
|
|
|
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
|
|
| CPU |
Supports 10th Gen Intel Core Processors (Socket 1200)
|
|
5 Power Phase design
|
|
| Chipset |
Intel H470
|
|
2 x DDR4 DIMM Slots
|
|
|
Supports ECC UDIMM memory modules (operate in non-ECC mode)
|
|
|
Supports Intel Extreme Memory Profile (XMP) 2.0
|
|
|
*Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
|
|
| BIOS |
128Mb AMI UEFI Legal BIOS with multilingual GUI support
|
|
SMBIOS 2.7 Support
|
|
| Graphics |
Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
|
|
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc
|
|
|
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
|
|
|
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
|
|
|
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
|
|
|
**VP9 10bit and VC-1 are for decode only.
|
|
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
| LAN |
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
|
|
Supports Wake-On-LAN
|
|
|
Supports Energy Efficient Ethernet 802.3az
|
|
|
Supports PXE
|
|
| Slots |
1 x PCI Express 3.0 x16 Slot*
|
|
1 x PCI Express 3.0 x1 Slot
|
|
|
*Supports NVMe SSD as boot disks
|
|
| Storage |
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
|
| Connector |
1 x SPI TPM Header
|
|
1 x Chassis Intrusion and Speaker Header
|
|
|
1 x CPU Fan Connector (4-pin)*
|
|
|
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
|
|
|
1 x 24 pin ATX Power Connector
|
|
|
1 x 8 pin 12V Power Connector
|
|
|
1 x Front Panel Audio Connector
|
|
|
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
|
|
|
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
|
|
|
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
|
|
|
**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
|
|
|
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
|
|
| Rear Panel I/O |
1 x PS/2 Mouse/Keyboard Port
|
|
1 x D-Sub Port
|
|
|
1 x HDMI Port
|
|
|
4 x USB 2.0 Ports (Supports ESD Protection)
|
|
|
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
|
|
|
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
|
|
|
HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
|
Software and UEFI
|
|
| Software |
ASRock Motherboard Utility (A-Tuning)
|
|
ASRock XFast LAN
|
|
| UEFI |
ASRock EZ Mode
|
|
ASRock Full HD UEFI
|
|
|
ASRock My Favorites in UEFI
|
|
|
ASRock Instant Flash
|
|
|
ASRock Internet Flash
|
|
|
ASRock Easy RAID Installer
|
|
|
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
| Support CD |
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
|
| Accessories |
Quick Installation Guide, Support CD, I/O Shield
|
|
2 x SATA Data Cables
|
|
| Hardware Monitor |
Temperature Sensing: CPU, Chassis/Water Pump Fans
|
|
Fan Tachometer: CPU, Chassis/Water Pump Fans
|
|
|
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
|
|
|
Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
|
|
|
CASE OPEN detection
|
|
|
CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
|
|
| Form Factor |
Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
|
|
Solid Capacitor design
|
|
| OS |
Microsoft Windows 10 64-bit
|
| Certifications | FCC, CE |
|
ErP/EuP ready (ErP/EuP ready power supply is required)
|
|
|
Supports ASRock U.2 Kit
|
|
| **Features, Price and Specifications are subject to change without notice to customer. |
