- ASRock B760M PG Sonic WiFi Motherboard
Description

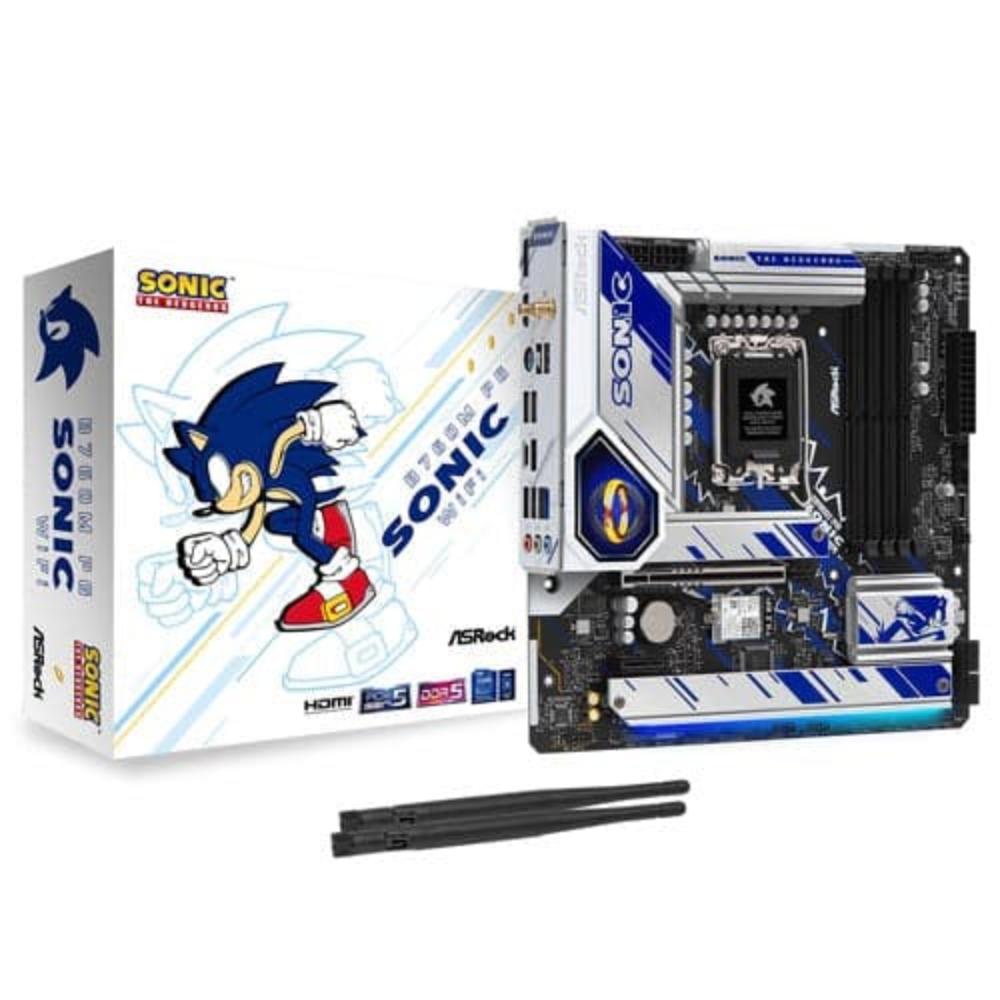

Asrock B760M PG SONIC WiFi Intel B760 Micro ATX Motherboard
Features
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 12+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec,
Nahimic Audio - 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
1 USB 3.2 Gen2 Type-A (Rear)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN,
- 802.11ax (WiFi 6E) + Bluetooth
- Supports ASRock Auto Driver Installer
Specifications
| Model | |
| Brand | ASRock |
| Model |
B760M PG SONIC WiFi
|
|
Supported CPU
|
|
| CPU Socket Type |
LGA 1700
|
| CPU Type |
Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
|
| Chipsets | |
| Chipset |
Intel B760
|
| Memory | |
| Number of Memory Slots |
4x288pin (DDR5)
|
| Memory Standard |
DDR5 4800
|
| Maximum Memory Supported | 128GB |
| Channel Supported |
Dual Channel
|
| Memory Feature |
Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
|
|
1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.
|
|
|
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
|
|
|
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
|
|
|
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
|
|
|
Supports Intel Extreme Memory Profile (XMP) 3.0
|
|
|
* Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)
|
|
|
Expansion Slots
|
|
| PCI Express 5.0 x16 |
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
|
|
15µ Gold Contact in VGA PCIe Slot (PCIE1)
|
|
| PCI Express x1 |
1 x PCIe 4.0 x1 Slot (PCIE2) *
|
|
* Supports NVMe SSD as boot disks
|
|
|
Storage Devices
|
|
| SATA 6Gb/s |
4 x SATA 6Gb/s
|
| M.2 | CPU: |
|
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
| Chipset: | |
|
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
|
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
|
* Supports Intel Volume Management Device (VMD)
|
|
|
* Supports NVMe SSD as boot disks
|
|
| SATA RAID | 0/1/5/10 |
|
Onboard Audio
|
|
| Audio Chipset |
Realtek ALC897
|
| Audio Channels |
7.1 Channels
|
|
Onboard LAN
|
|
| LAN Chipset |
Dragon RTL8125BG
|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN |
802.11ax Wi-Fi 6E
|
| Bluetooth | Yes |
|
Rear Panel Ports
|
|
| Back I/O Ports |
2 x Antenna Ports
|
|
1 x PS/2 Mouse/Keyboard Port
|
|
|
1 x HDMI Port
|
|
|
1 x DisplayPort 1.4
|
|
|
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
|
|
|
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
|
|
|
4 x USB 3.2 Gen1 Ports
|
|
|
2 x USB 2.0 Ports
|
|
|
1 x RJ-45 LAN Port
|
|
|
HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
|
Internal I/O Connectors
|
|
| Onboard USB |
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
|
|
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
|
|
|
1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
|
|
| Other Connectors |
1 x eDP Signal Connector
|
|
1 x SPI TPM Header
|
|
|
1 x Chassis Intrusion and Speaker Header
|
|
|
1 x RGB LED Header*
|
|
|
3 x Addressable LED Headers**
|
|
|
1 x CPU Fan Connector (4-pin)***
|
|
|
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ****
|
|
|
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) *****
|
|
|
1 x Front Panel Audio Connector
|
|
|
* Supports in total up to 12V/3A, 36W LED Strip
|
|
|
** Support in total up to 5V/3A, 15W LED Strip
|
|
|
*** CPU_FAN1 supports the fan power up to 1A (12W).
|
|
|
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
|
|
|
***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
|
|
|
***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
|
|
|
Physical Spec
|
|
| Form Factor |
Micro ATX
|
| Dimensions (W x L) |
9.6″ x 9.6″
|
| Power Pin |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
|
|
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
|
|
|
Windows Compatibility
|
|
| Windows 11 |
Supported
|
| Features | |
| Features |
Superb Productivity
|
|
PCIe Gen5 (Graphics)
|
|
|
Dual Channel DDR5
|
|
|
Rock-Solid Durability
|
|
|
12+1+1 Power Phase, 50A Dr.MOS for VCore+GT
|
|
|
Flexible Integrated I/O Shield
|
|
|
Ultrafast Connectivity
|
|
|
2.5G LAN, 802.11ax Wi-Fi 6E Module
|
|
|
EZ Update
|
|
|
ASRock Auto Driver Installer
|
|
|
EZ Troubleshooter
|
|
|
ASRock Post Status Checker
|
|
|
Packaging
|
|
| Package Contents |
1 x User Manual
|
|
2 x SATA Data Cables
|
|
|
2 x ASRock WiFi 2.4/5/6 GHz Antennas
|
|
|
3 x Screws for M.2 Sockets
|
|
|
2 x Standoffs for M.2 Sockets
|
|
|
**Features, Price and Specifications are subject to change without notice to customer.
|
