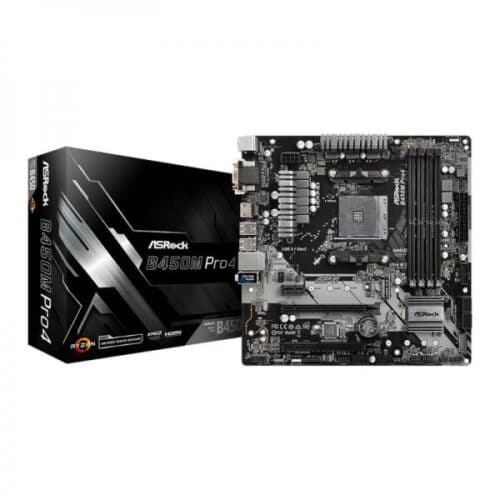

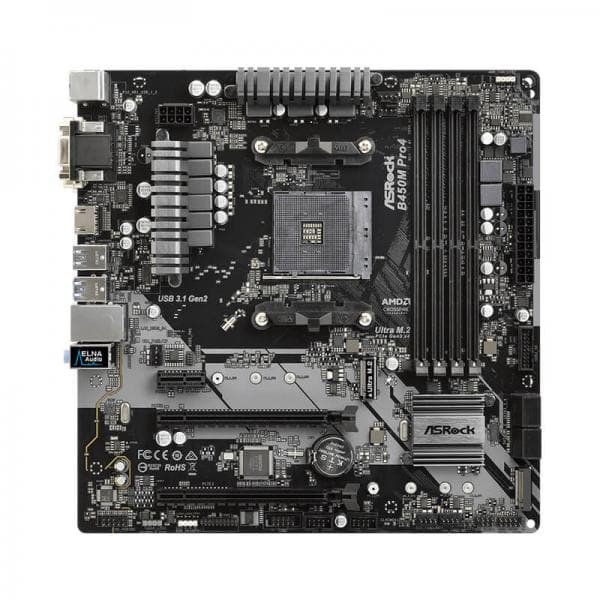

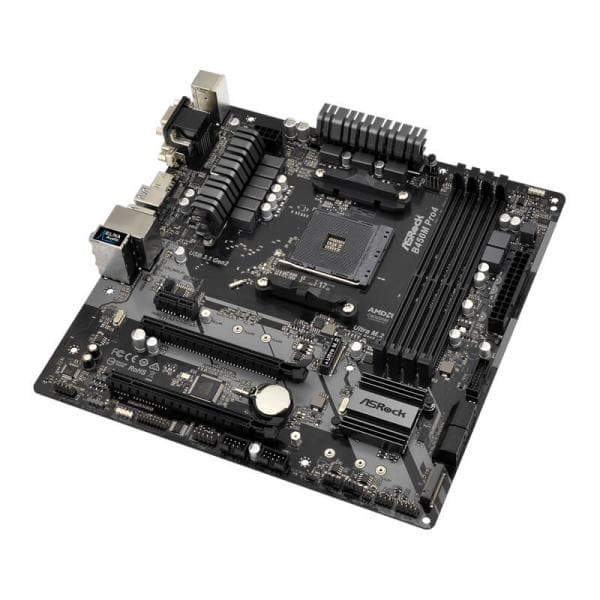

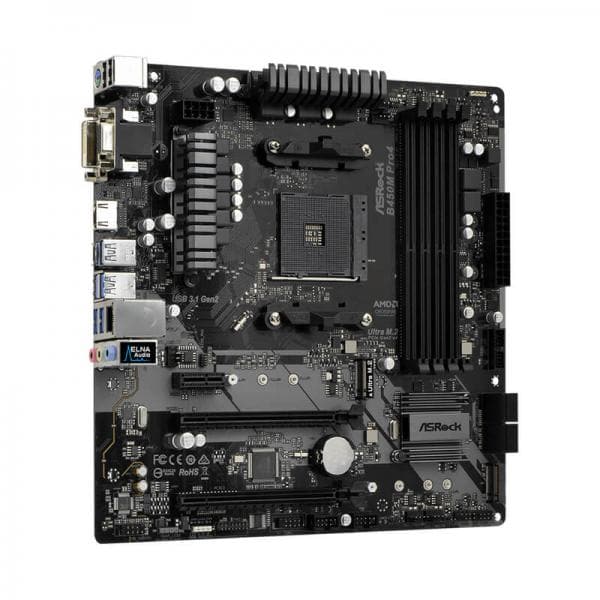

ASRock B450M Pro4 Motherboard

ASRock B450M Pro4 Motherboard

Features:

ASRock B450M Pro4 is an AMD AM4 socket based motherboard.ASRock B450M Pro4 supports up to all AMD latest gen processors like 3rd Gen with a small bios update. It supports DDR4 3200+(OC) MHZ ram.This motherboard comes with 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 1.0 .It supports AMD Quad CrossFireX to dramatically increase gaming performance with 2 or more Discreet GPU's. This motherboard supports all Three most commonly used connectors with DisplayPort +DVI+HDMI combo for all graphic output. It has dual 3.1 Gen2(Type-A +Type C) ports to deliver up to 10 Gbps data transfer rates. It comes with 4 SATA3, 1 Ultra M.2(PCIe Gen 3 x4), 1 M.2(SATA3). It is compatible with ASRock's U,2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSD.

This motherboard also supports a powerful tool called AMD StoreMI technology. This technology will automatically move the data you access the most to the SSD, so you get the best of both worlds. It has 6 USB Gen1(2 Front 4 Rear) to fulfill all your connectivity needs. It also supports Realtek Gigabit LAN. As we all know the ASRock product's quality and after-sales service is extremely good that adds more value to this motherboard. This motherboard comes with full spike protection to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. And top of all of the features it comes with Three years of warranty.

AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD.AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

Dual M.2 For SSD

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Dual USB 3.1 Gen2 (Type-A Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

2oz Copper

It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.

Digi Power

This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.

ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

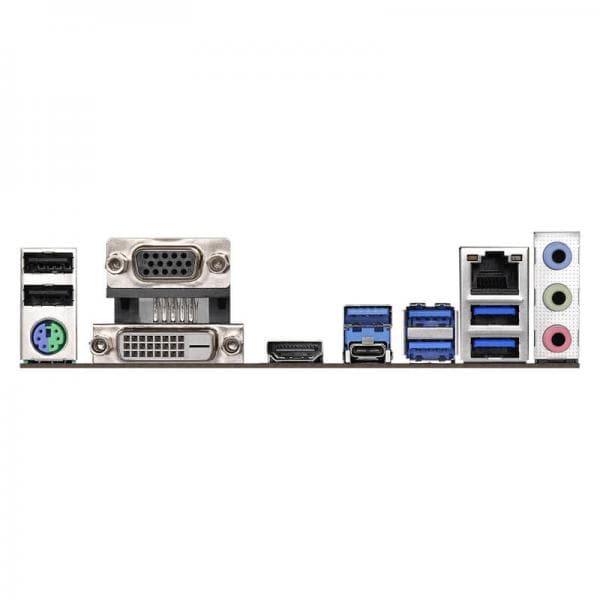

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub DVI-D HDMI combo. Plus the HDMI port supports 4K resolution.

*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

*Supported with processors with integrated graphics only.

A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
