Description

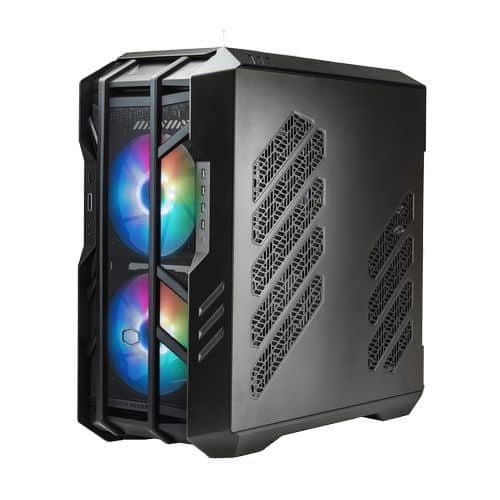

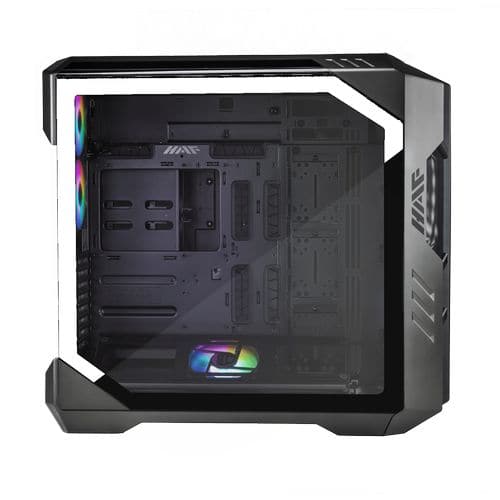

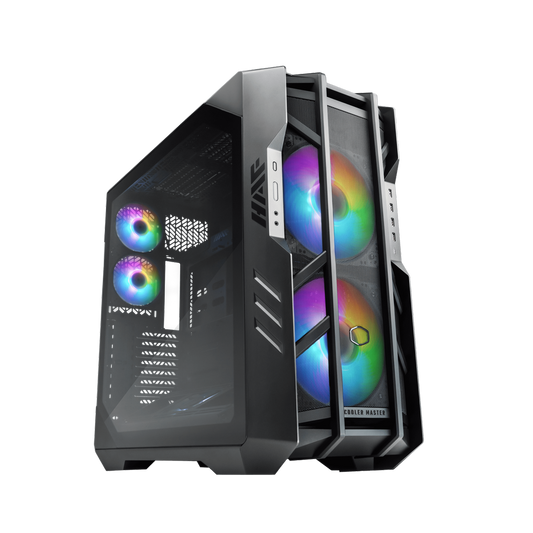

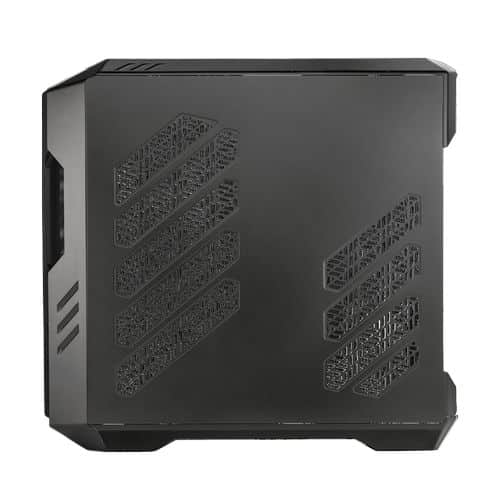

Cooler Master HAF 700 (E-ATX) ARGB Full Tower Cabinet
Features :
HAF 700 THE BERSERKER
Unparalleled Hardware & Cooling CapabilitiesMammoth Water Cooling SupportExclusive Tool-Less TechnologyARGB Gen2 ready with MasterPlus+ integration
IN SPIRIT OF COOLER MASTER’S HAF LEGACY
HAF 700 embodies the spirit of HAF’s performance oriented design, boasting attention to mechanical detail.
NO LIMITS.
The HAF 700 is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.
RICH CONNECTIVITY
The front I/O is designed to maximize the front connectivity for most high end motherboards, featuring four USB Gen 3.1 Type A ports, a USB Gen 3.2 Type C, a 4 pin audio/mic headset jack as well as a dedicated mic jack.
MAMMOTH RADIATOR SUPPORT
UNPARALLELED OPTIONS FOR CUSTOM COOLING
480mm: Side Panel *1
360mm: Front Panel *1 or Bottom Panel *1 / Top Panel *2
240mm: Rear Panel *1
ADVANCED MOUNTING OPTIONS

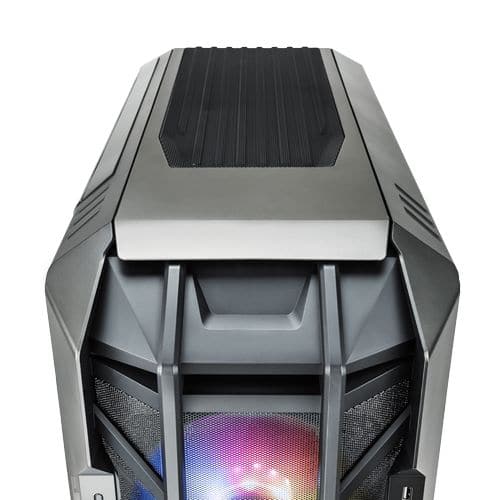

The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems.

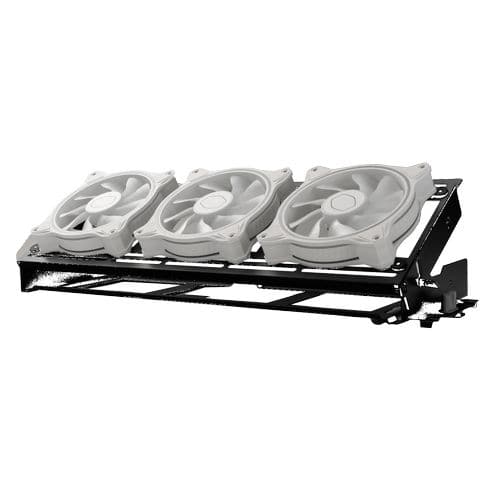

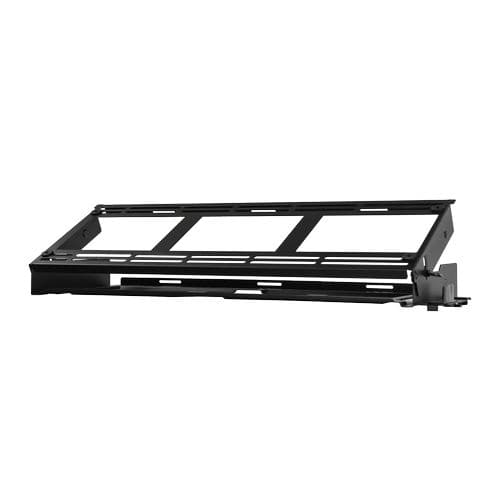

This, coupled with the rotatable radiator/fan bracket included out of the box allows for an unparalleled building experience.
EXCLUSIVE 200MM SICKLEFLOW ARGB PWM PERFORMANCE EDITION
HAF 700 comes with dual exclusive 200mm Sickleflow ARGB PWM "Performance Edition" fans tailored to strike a balance between performance potential and noise levels.
INTEGRATED 7X PWM & 5X ARGB HUB
This chassis features a fully integrated PWM/ARGB Hub that allows for effortless cable management and control over multiple fans and ARGB devices. The Hub is fully compatible with ARGB Gen2 devices.
ARGB GEN2 READY, CONTROLLER INCLUDED
ARGB Gen2 technology allows users to explore full range customization down to the lighting effecting of each individual LED, while remaining compatible with third party devices.
MASTERPLUS+ SOFTWARE INTEGRATION
HAF 700 comes equipped with a software suite in MasterPlus+, facilitating user-friendly management and customization of the integrated ARGB Gen2 controller (A1).
The A1 controller plugin will automatically be activated on MasterPlus+ once the controller has been connected to the system.

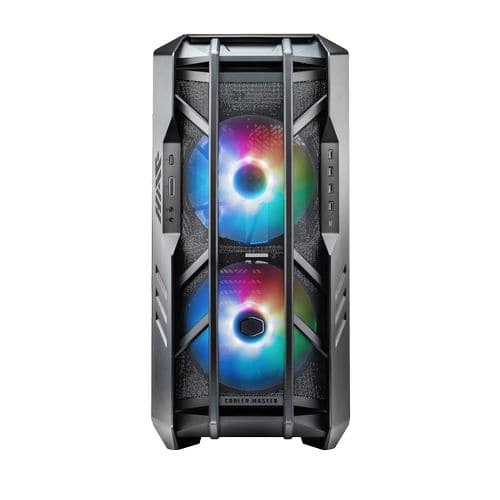

UNRESTRICTED FRONT PANEL INTAKE
HAF 700 sports a fully meshed front panel, specifically designed to allow for maximum air intake.
With the front panel structurally reinforced to prevent resonation caused by fan vibrations, systems can run smoothly at minimal noise levels.

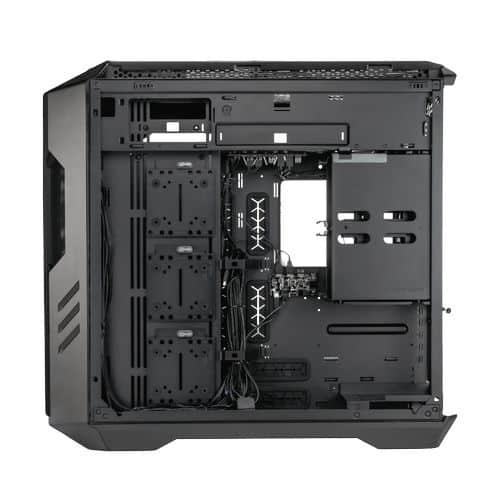

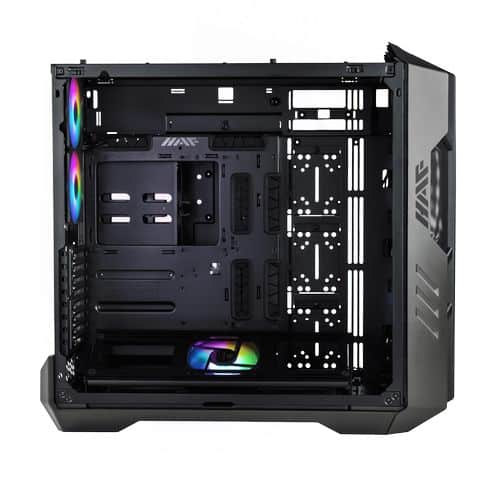

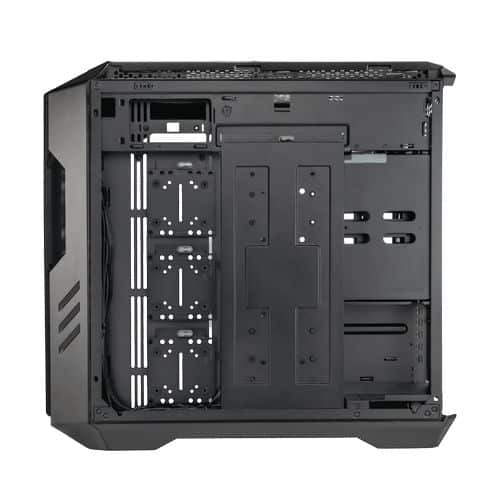

MULTI CHAMBER LAYOUT
HAF 700’s structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.
Specifications :
| Model Number | H700-IGNN-S00 |
| Exterior Color | Titanium Grey |
| Materials - Exterior | Steel, Plastic |
| Materials - Left Side Panel | Tempered Glass, Steel, Plastic |
| Dimensions (L x W x H) | 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions) |
| Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB |
| Expansion Slots | 8 |
| 2.5" / 3.5" Drive Bays (Combo) | 9 (4*HDD bracket, 5*Screw+Rubber) |
| I/O Panel - USB Ports | 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0) |
| I/O Panel - Audio In / Out | 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack |
| Pre-installed Fans - Front | 2x SickleFlow 200 ARGB PWM |
| Pre-installed Fans - Rear | 2x SickleFlow 120 ARGB PWM |
| Pre-installed Fans - Bottom | 1x SickleFlow 120 ARGB PWM |
| Fan Support - Top | 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket) |
| Fan Support - Front | 2x 200mm |
| Fan Support - Rear | 2x 120mm |
| Fan Support - Bottom | 3x 120/140mm |
| Fan Support - Side | 4x 120mm / 3x 140mm |
| Radiator Support - Top | Up to 2x 360mm / 1x 420mm |
| Radiator Support - Rear | Up to 240mm |
| Radiator Support - Bottom | Up to 420/360mm |
| Radiator Support - Side | Up to 480/420/360mm |
| Clearance - CPU Cooler | 166mm / 6.53 inch |
| Clearance - PSU | 200mm / 7.87 inch |
| Clearance - GFX | 490mm / 19.29 inch |
| Cable Routing - Behind Motherboard Tray | 90-101mm |
| Included Accessories | 1x Rotatable Radiator Bracket, 1x LED Controller A1 (ARGB Gen2), 1x ARGB/PWM Hub |
| Dust Filters | Bottom, Right side |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 years |
| Series | HAF Series |
| Size | Full Tower |
| Note | * For regular 30mm thick radiators, for thicker please reference compatibility sheet. |
| NOTE** | ***Features, Price and Specifications are subject to change without notice. |
